11 More About Matrices

Now that you have seen some ways to create matrices, let’s discuss a number of basic manipulations of matrices. I will show you examples of various operations, and then you’ll have the chance to put them in practice with some exercises listed at the end of the chapter.

11.1 Basic Operations with Matrices

  • Selecting elements:
    • select a given cell
    • select a set of cells
    • select a given row
    • select a set of rows
    • select a given column
    • select a set of columns
  • Adding a new column
  • Adding a new row
  • Deleting a column
  • Deleting a row
  • Renaming a column
  • Moving a column

Let’s say you have a matrix mat with the following content:

# inputs
deposit = 1000
rate_savings = 0.02
rate_moneymkt = 0.025
rate_certificate = 0.03
years = 0:5

# future values
savings = deposit * (1 + rate_savings)^years
moneymkt = deposit * (1 + rate_moneymkt)^years
certificate = deposit * (1 + rate_certificate)^years

# matrix
mat = matrix(c(years, savings, moneymkt, certificate), nrow = 6, ncol = 4)

# row and columns names
rownames(mat) = 1:6
colnames(mat) = c("year", "savings", "moneymkt", "certificate")

mat
  year  savings moneymkt certificate
1    0 1000.000 1000.000    1000.000
2    1 1020.000 1025.000    1030.000
3    2 1040.400 1050.625    1060.900
4    3 1061.208 1076.891    1092.727
5    4 1082.432 1103.813    1125.509
6    5 1104.081 1131.408    1159.274

11.1.1 Selecting elements

The matrix mat is a 2-dimensional object: the 1st dimension corresponds to the rows, while the 2nd dimension corresponds to the columns. Because mat has two dimensions, the bracket notation involves working with data frames in this form: mat[ , ].

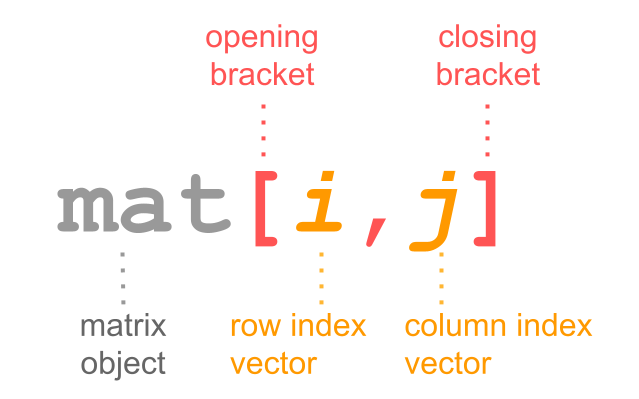

Bracket notation in matrices

Figure 11.1: Bracket notation in matrices

In other words, you have to specify values inside the brackets for the 1st index, and the 2nd index: mat[index1, index2].

Selecting cells

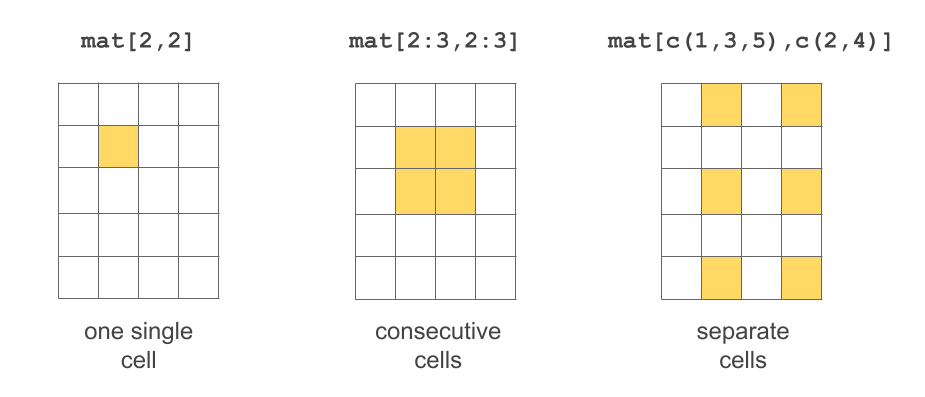

Several ways to select cells

Figure 11.2: Several ways to select cells

# select value in row 1 and column 1
mat[1, 1]
> [1] 0

# select value in row 2 and column 3
mat[2, 3]
> [1] 1025

# select values in these cells
mat[1:2, 3:4]
>   moneymkt certificate
> 1     1000        1000
> 2     1025        1030

It is also possible to exclude certain rows-and-columns by passing negative numeric indices:

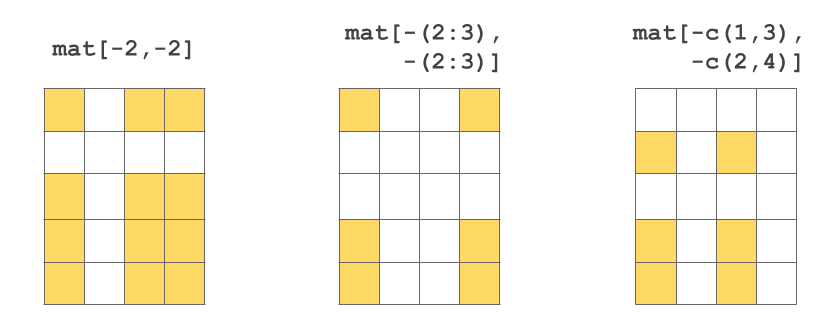

Several ways to exclude cells

Figure 11.3: Several ways to exclude cells

Selecting rows

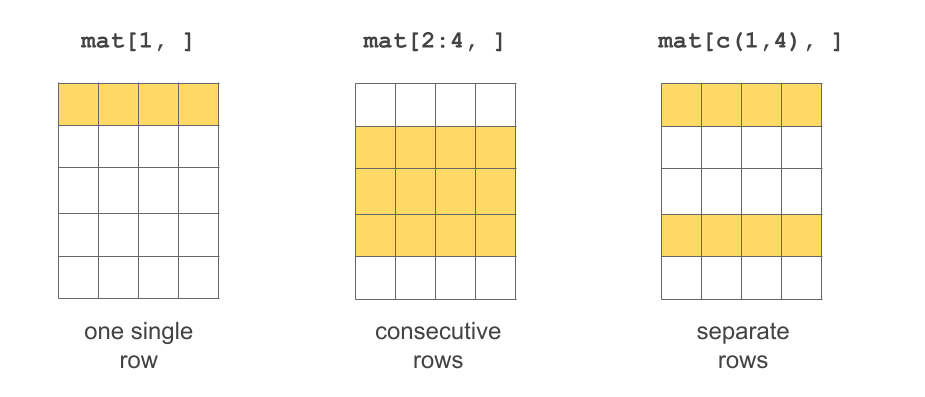

Several ways to select rows

Figure 11.4: Several ways to select rows

If no value is specified for index1 then all rows are included. Likewise, if no value is specified for index2 then all columns are included.

# selecting first row
mat[1, ]
>        year     savings    moneymkt certificate
>           0        1000        1000        1000

# selecting third row
mat[3, ]
>        year     savings    moneymkt certificate
>       2.000    1040.400    1050.625    1060.900

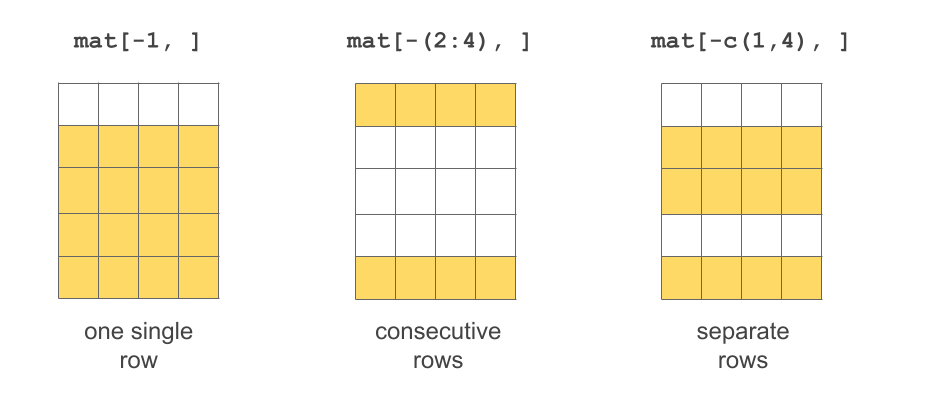

Several ways to exclude rows

Figure 11.5: Several ways to exclude rows

Selecting columns

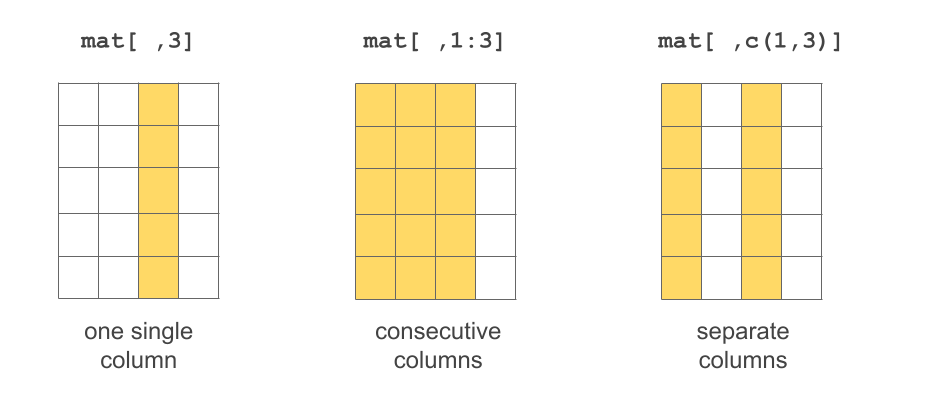

Several ways to select columns

Figure 11.6: Several ways to select columns

# selecting second column
mat[ ,2]
>        1        2        3        4        5
> 1000.000 1020.000 1040.400 1061.208 1082.432
>        6
> 1104.081

# selecting columns 2 to 4
mat[ ,2:4]
>    savings moneymkt certificate
> 1 1000.000 1000.000    1000.000
> 2 1020.000 1025.000    1030.000
> 3 1040.400 1050.625    1060.900
> 4 1061.208 1076.891    1092.727
> 5 1082.432 1103.813    1125.509
> 6 1104.081 1131.408    1159.274

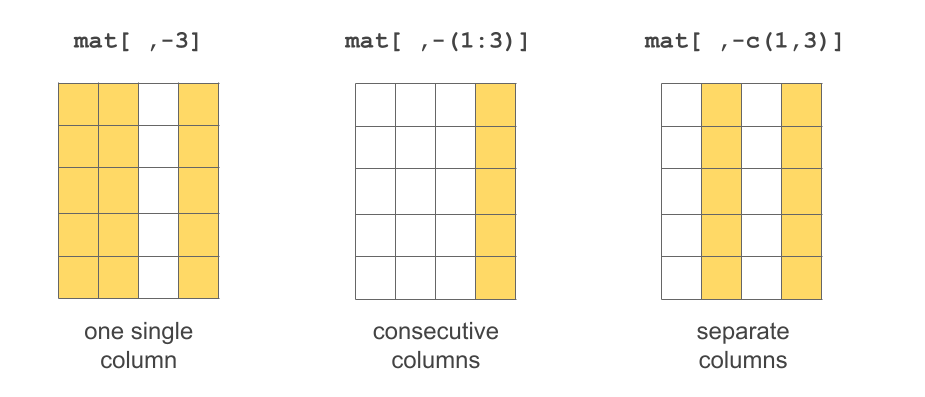

Several ways to exclude columns

Figure 11.7: Several ways to exclude columns

11.1.2 Adding a column

To add a column, use the column-bind function cbind()

# vector
vec <- c(2, 4, 6, 8, 10, 12)

# adding weights to mat
mat <- cbind(mat, vec)
mat
>   year  savings moneymkt certificate vec
> 1    0 1000.000 1000.000    1000.000   2
> 2    1 1020.000 1025.000    1030.000   4
> 3    2 1040.400 1050.625    1060.900   6
> 4    3 1061.208 1076.891    1092.727   8
> 5    4 1082.432 1103.813    1125.509  10
> 6    5 1104.081 1131.408    1159.274  12

11.1.3 Deleting a column

What if you want to delete a column? Simple: use a negative index to exclude the undesired column(s)

# deleting fifth column
mat <- mat[ ,-5]
mat
>   year  savings moneymkt certificate
> 1    0 1000.000 1000.000    1000.000
> 2    1 1020.000 1025.000    1030.000
> 3    2 1040.400 1050.625    1060.900
> 4    3 1061.208 1076.891    1092.727
> 5    4 1082.432 1103.813    1125.509
> 6    5 1104.081 1131.408    1159.274

11.1.4 Moving a column

What if you want to move one or more columns to a different position? For example, what if you want to move year to the last position (last column)? One option is to create a vector of column indices in the desired order, and then use this vector (for the index of columns) to reassign the matrix like this:

reordered_cols <- c(2:4, 1)
mat <- mat[ ,reordered_cols]
mat
>    savings moneymkt certificate year
> 1 1000.000 1000.000    1000.000    0
> 2 1020.000 1025.000    1030.000    1
> 3 1040.400 1050.625    1060.900    2
> 4 1061.208 1076.891    1092.727    3
> 5 1082.432 1103.813    1125.509    4
> 6 1104.081 1131.408    1159.274    5
