20 Thematic Maps
So far we’ve seen how to create maps with two approaches:
"maps"
and"ggplot2"
"rnaturalearth"
,"sf"
, and"ggplot2"
In this chapter we describe a third approach to make maps with R packages "sf"
and "tmap"
(no "ggplot2"
). This is yet another map-making approach that
is similar to those listed above. One of the main differences is that
thematic maps don’t rely on "ggplot2"
, instead "tmap"
relies on its own
grammar of graphics.
The code in this chapter requires the following packages:
library(tidyverse) # syntactic data wrangling
library(tmap) # thematic maps
library(sf) # simple features
library(rnaturalearth) # public domain map data sets

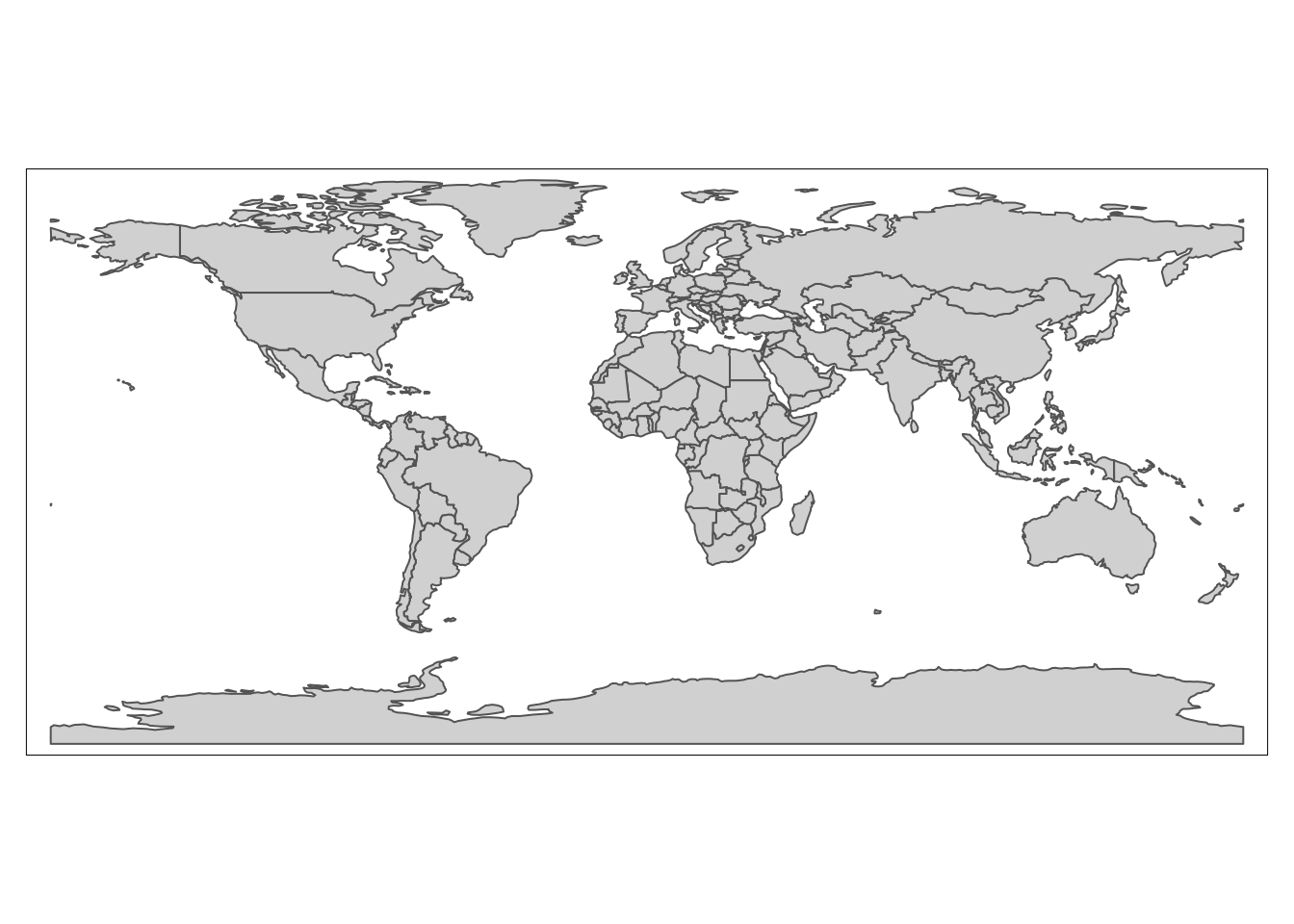

20.1 Basic World Map
# World map (from "tmap")
data("World")
tm_shape(World) +
tm_polygons()

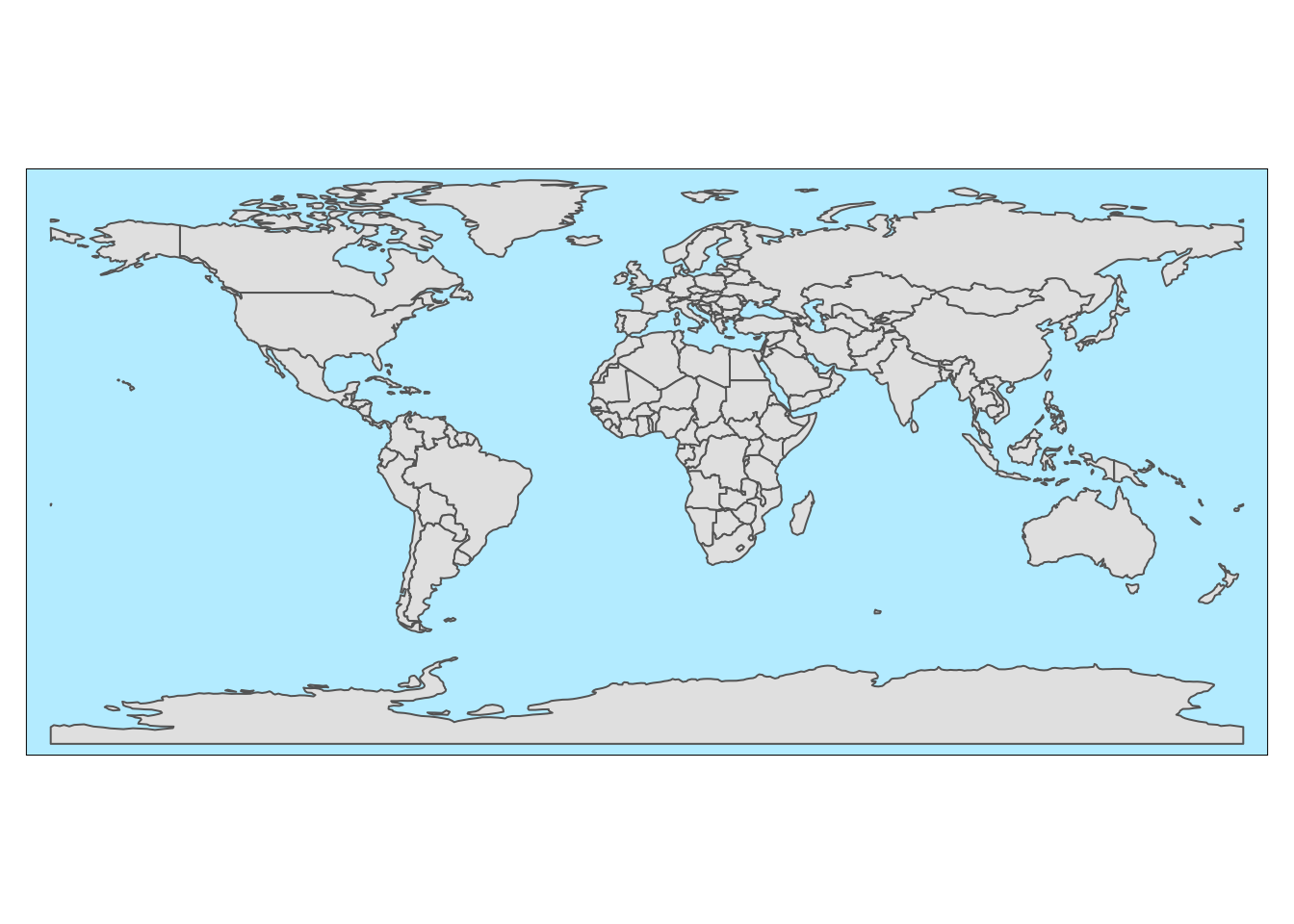

tm_layout()
is used to specify elements that have to do with the map layout
such as the background color, for example:
tm_shape(World) +
tm_polygons(col = "gray90") +
tm_layout(bg.color = "lightblue1")
20.1.1 tmaps with sf
objects
We can also work with map objects of class "sf"
(simple features), which
means we can take advantage of maps available in "rnaturalearth"
# natural earth world country polygons
= ne_countries(continent = "north america", returnclass = "sf")
north_america

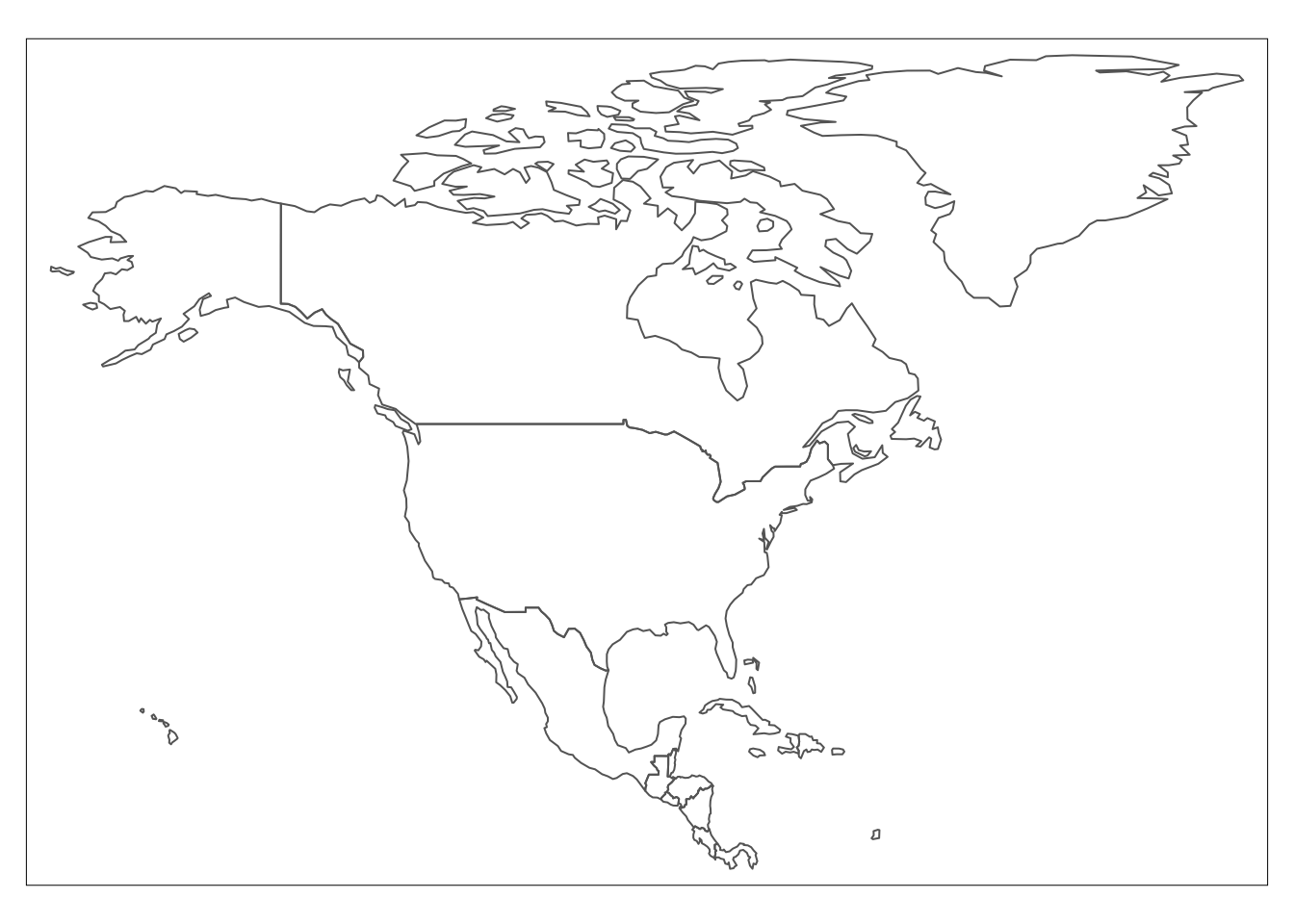

tm_shape(north_america) +
tm_borders()

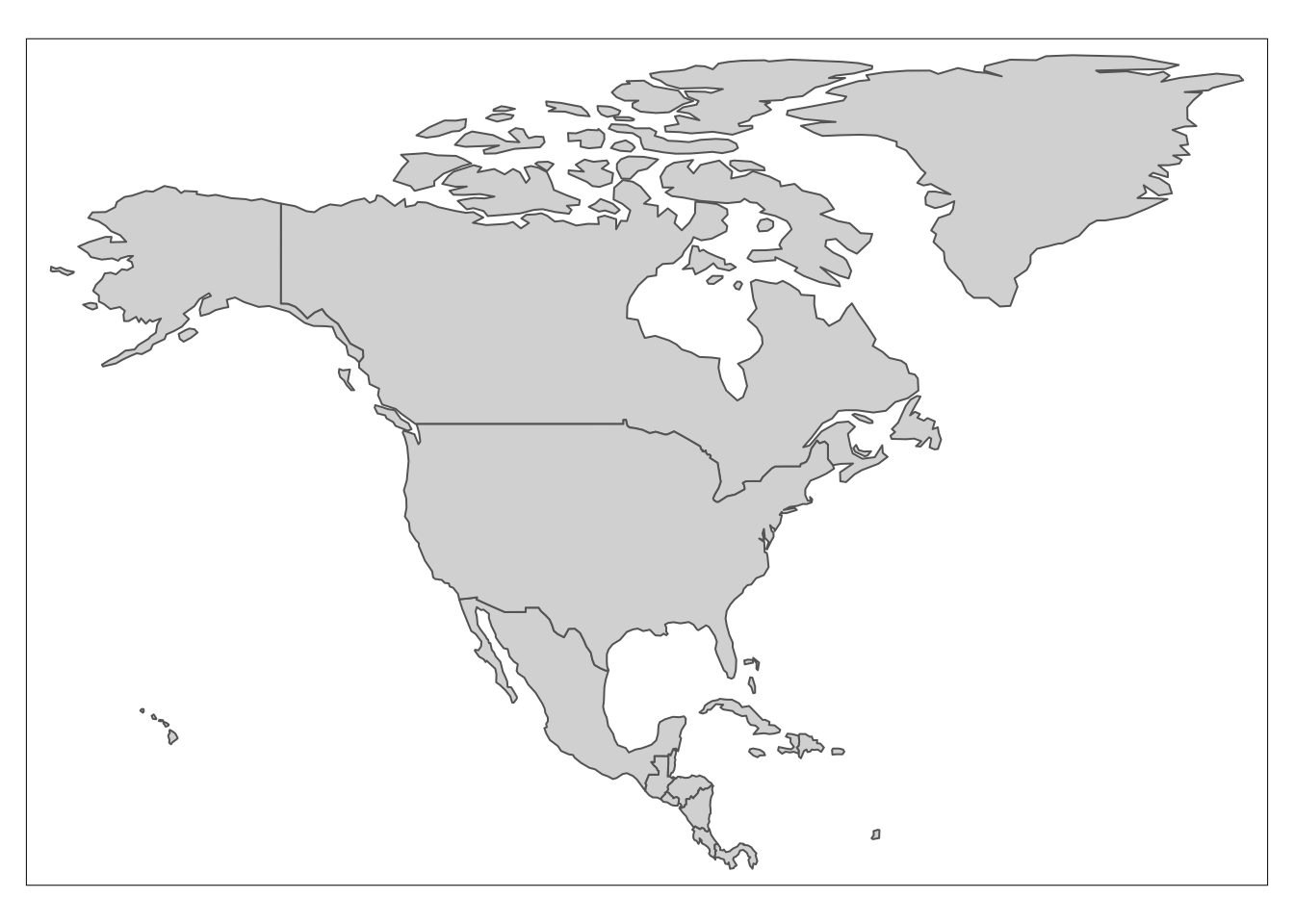

tm_shape(north_america) +
tm_polygons()
20.2 Adding Storms in 2010
# 2nd map (coloring storms individually)
= 2010
which_year
# Subset storms (for a given year)
= storms |>
storms_set filter(year == which_year)
# convert to "sf" object
= st_as_sf(storms_set, coords = c("long", "lat")) storms_set_sf

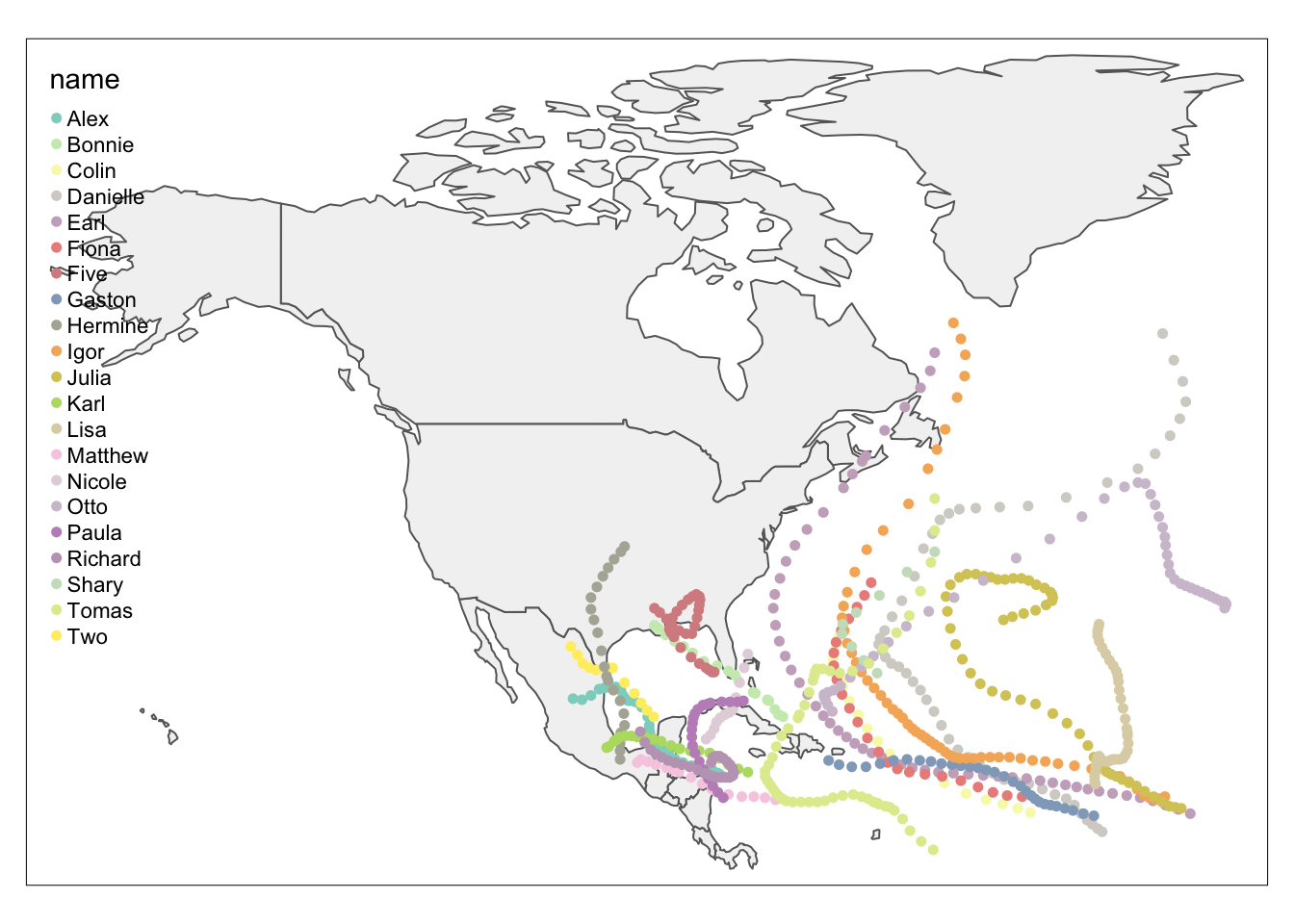

Now we can plot it:
tm_shape(north_america) +
tm_polygons(col = "gray95") +
tm_shape(storms_set_sf) +
tm_dots(col = "name", size = 0.1)
## Warning: Currect projection of shape storms_set_sf unknown. Long-lat (WGS84) is
## assumed.
20.3 Adding Hurricanes in 2010
Coordinate Reference Systems (CRS) provide a standardized way of describing locations. Many different CRS are used to describe geographic data. In R, when data with different CRS are combined it is important to transform them to a common CRS so they align with one another.
A particular CRS can be referenced by its EPSG code (e.g. EPSG: 4326).
In order to use the longitude and latitude coordinates of storms
with tmap
functions, we have to create a simple features object, and also specify the
CRS to be used. In this case, we use the standard EPSG: 4326.
The Latitude and Longitude coordinates for a particular location will differ depending on the CRS and when the measurement was taken. Below we use WGS84 (EPSG: 4326)
# 2nd map (coloring storms individually)
= 2010
which_year
# Subset storms (for a given year)
= storms |>
hurricanes_set filter(year == which_year & wind >= 64)
# convert to "sf" object
= st_as_sf(
hurricanes_set_sf
hurricanes_set, coords = c("long", "lat"),
crs = 4326)

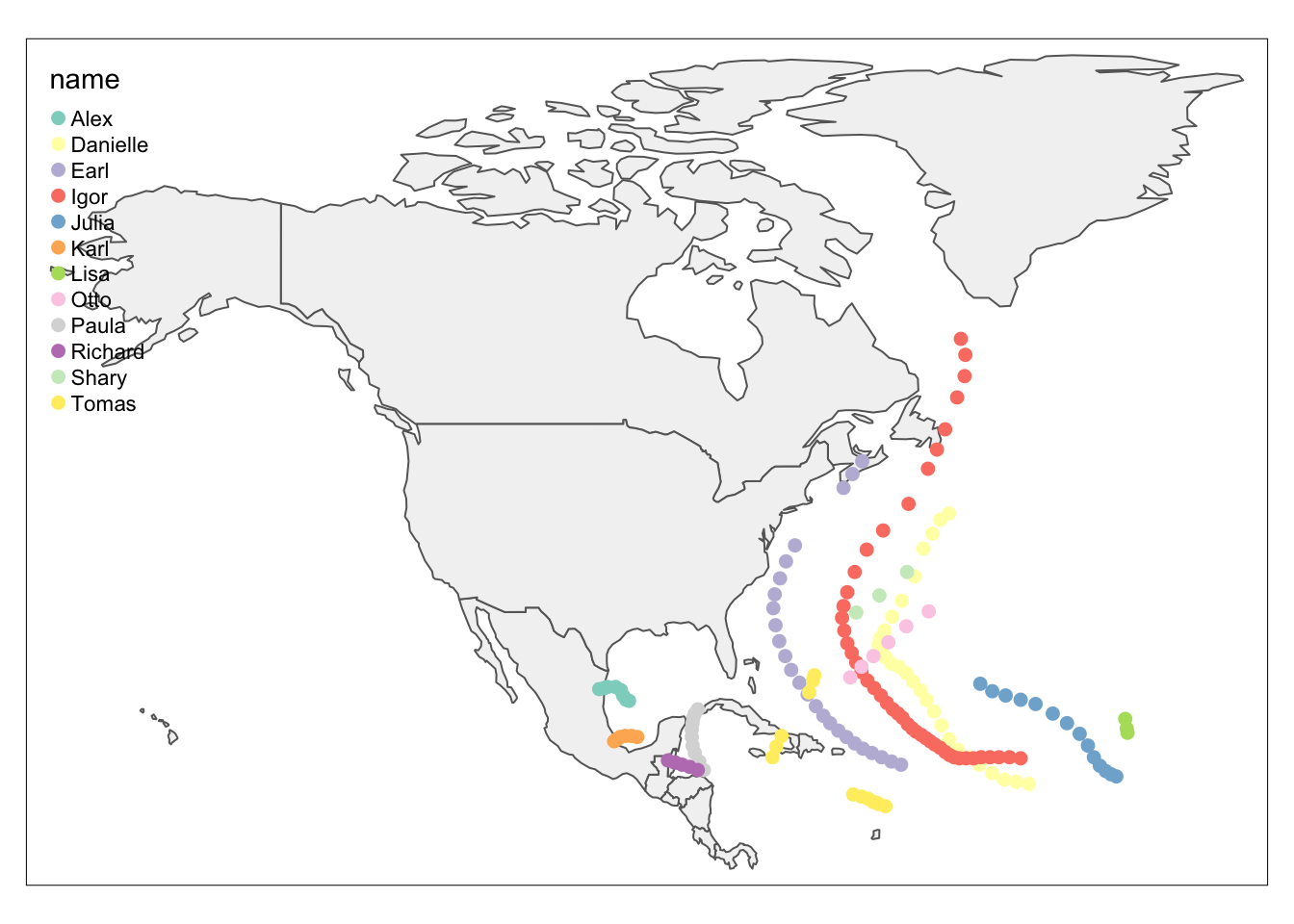

Now we can plot it:
tm_shape(north_america) +
tm_polygons(col = "gray95") +
tm_shape(hurricanes_set_sf) +
tm_dots(col = "name", size = 0.2)
