# 15 Boundaries and Look Arounds

#### by Chitra Venkatesh

Boundaries are metacharacters too and match based on what preceeds or follows current position. Let’s understand this through some examples after reviewing common boundaries.

Boundary Description Example
\\b Matches a word boundary, i.e., when a side is not [A-z0-9_] \\bHi \\bHi\\b
\\B Matches when not a word boundary, i.e., when a side is [A-z0-9_] \\BHi

In the following example, we would try these cases:

• Case 1: Extract words that exactly match with hi

• Case 2: Extract words that contain hi in between characters

• Case 3: Extract words that start with hi

some_text <- c("Hi there, its high time we learn shiny apps")

Case 1: Extract words that exactly match with hi. Note the use of ignore_case argument to regex()

str_extract_all(some_text, regex("\\bhi\\b", ignore_case = TRUE))
#> [[1]]
#> [1] "Hi"

Case 2: Extract words that contain hi in between characters

• We include [A-z]* on either side of \\Bhi\\B to match the entire word, otherwise the pattern \\Bhi\\B will only match hi from shiny.

• We used [A-z]* instead of [A-z]+ to specifically showcase that no other hi got matched as * denotes 0 or any.

str_extract_all(some_text, regex("[A-z]*\\Bhi\\B[A-z]*", ignore_case = TRUE))
#> [[1]]
#> [1] "shiny"

Case 3: Extract words that start with hi

Note that shiny is not matched since it starts with s and not hi.

str_extract_all(some_text, regex("\\bhi[A-z]*", ignore_case = TRUE))
#> [[1]]
#> [1] "Hi"   "high"

## 15.1 Look Arounds

As the name suggests, it helps look around the string. Look Arounds indicate positions just like anchors, \$, ^, that we learnt in previous section.

There are four types of look arounds.

Look Around Notation Description
Positive Look Ahead A(?=pattern) Check if pattern follows A
Negative Look Ahead A(?!pattern) Check if pattern does not follow A
Positive Look Behind (?<=pattern)A Check if pattern precedes A
Negative Look Behind (?<!pattern)A Check if pattern does not preceed A

In the table, A refers to a character set/group that we are trying to extract.

Let’s look at some examples for Look Aheads.

In the variable weights_item, we have weights of items and we would like to retrieve the weights without the unit of measurement.

weights_item <- c("55lbs", "32","14lbs","12","224lbs")

str_extract(weights_item, regex("[0-9]+"))
#> [1] "55"  "32"  "14"  "12"  "224"

Let’s change the format of weights_item and check how the output looks like. We will use str_extract_all() instead of str_extract() to extract all occurances of weights in a single string.

weights_item <- "55lbs, 32, 14lbs, 12, 224lbs"

str_extract_all(weights_item, regex("[0-9]+"))
#> [[1]]
#> [1] "55"  "32"  "14"  "12"  "224"

Let’s change our input to contain weights that are in kilograms.

weights_item <- "55lbs, 8kg, 32, 14lbs, 12, 224lbs, 2kg, 21lbs"

str_extract_all(weights_item, regex("[0-9]+"))
#> [[1]]
#> [1] "55"  "8"   "32"  "14"  "12"  "224" "2"   "21"

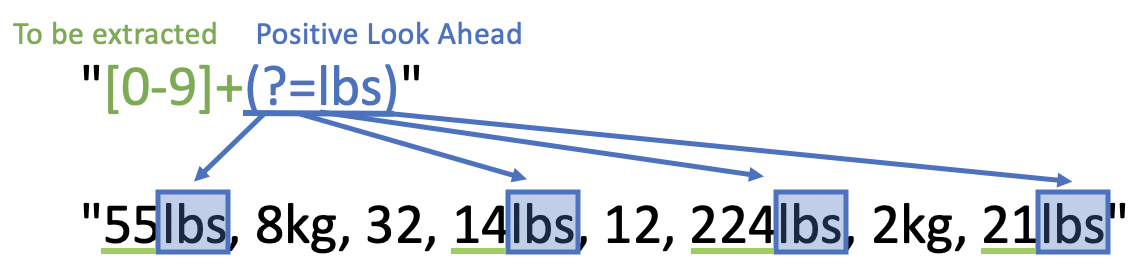

In case we want to retrieve only those weights with unit of measurement lbs, we could use a positive look ahead. In the syntax A(?=pattern), the pattern we look for would be lbs. Any number that is followed by lbs will be extracted hence A is [0-9]+.

Don’t forget that (?=lbs) does not extract lbs, it is used to assert position only!

weights_item <- "55lbs, 8kg, 32, 14lbs, 12, 224lbs, 2kg, 21lbs"

str_extract_all(weights_item, regex("[0-9]+(?=lbs)"))
#> [[1]]
#> [1] "55"  "14"  "224" "21"

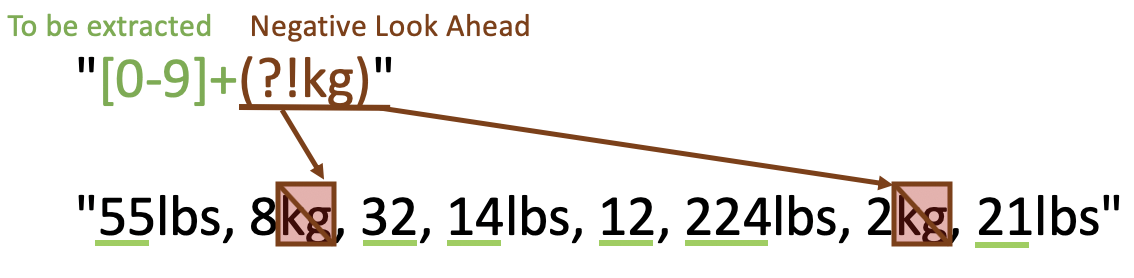

In case we want to extract all weights that don’t have kg as the unit of measurement, we could use negative look ahead. In the syntax A(?!pattern), the pattern here is kg and A should be character class [0-9] with quantifier + (one or many).

weights_item <- "55lbs, 8kg, 32, 14lbs, 12, 224lbs, 2kg, 21lbs"

str_extract_all(weights_item, regex("[0-9]+(?!kg)"))
#> [[1]]
#> [1] "55"  "32"  "14"  "12"  "224" "21"

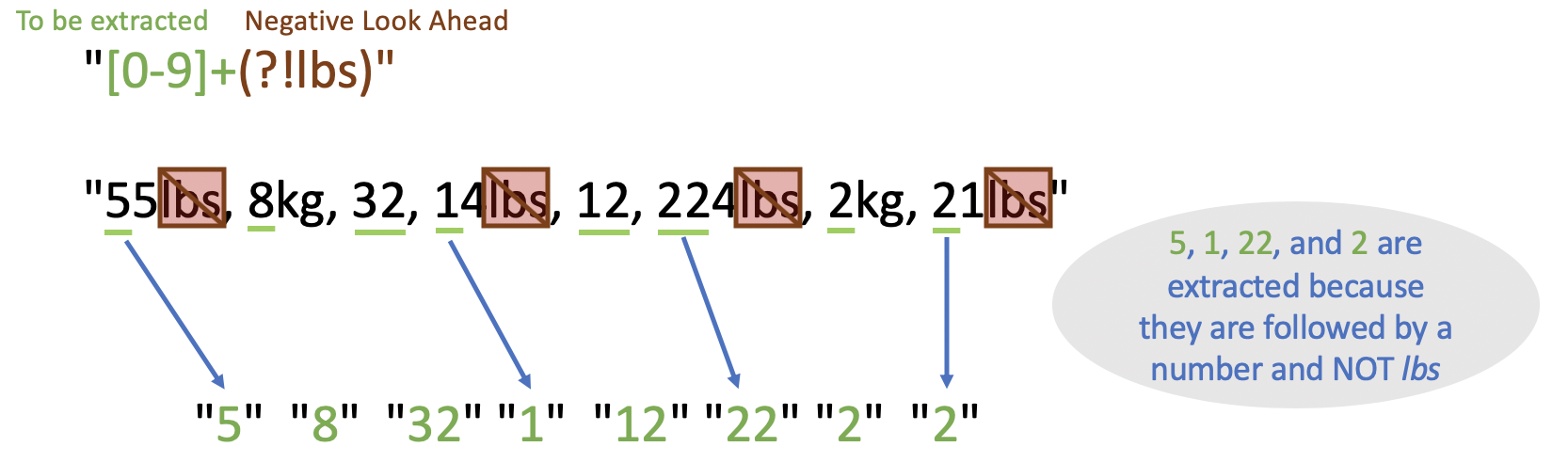

Similarly, using negative look ahead to extract all weights that don’t have lbs as the unit of measurement should work too, but in the code snippet below, we get an incorrect output. Can you guess why?

weights_item <- "55lbs, 8kg, 32, 14lbs, 12, 224lbs, 2kg, 21lbs"

str_extract_all(weights_item, regex("[0-9]+(?!lbs)"))
#> [[1]]
#> [1] "5"  "8"  "32" "1"  "12" "22" "2"  "2"

This is incorrect since we extract the 5 from 55lbs, 1 from 14lbs, 22 from 224lbs and 2 from 21lbs additional to our actual answer.

We could overcome this by specifically mentioning that the number (weight) cannot be followed by:

• the pattern lbs

• some number (i.e, from 21lbs, we should not extract 2)

To do this, we could use alternation, denoted as pipe |, which is similar to OR.

The pattern in A(?!pattern) is now lbs or [0-9]+, which we can represent as (lbs|[0-9]+). Note that our pattern in enclosed within paranthesis.

weights_item <- "55lbs, 8kg, 32, 14lbs, 12, 224lbs, 2kg, 21lbs"

str_extract_all(weights_item, regex("[0-9]+(?!(lbs|[0-9]+))"))
#> [[1]]
#> [1] "8"  "32" "12" "2"

The illustration above is typical of regular expressions. As the test cases become complex, one has to tweek the expression to include all the corner cases.

### 15.1.2 Look Behinds

As the name suggests, we look behind the current position for presence or absence of a pattern. This works the same way as look ahead, except that we look for the preceding characters.

Let us look at some examples.

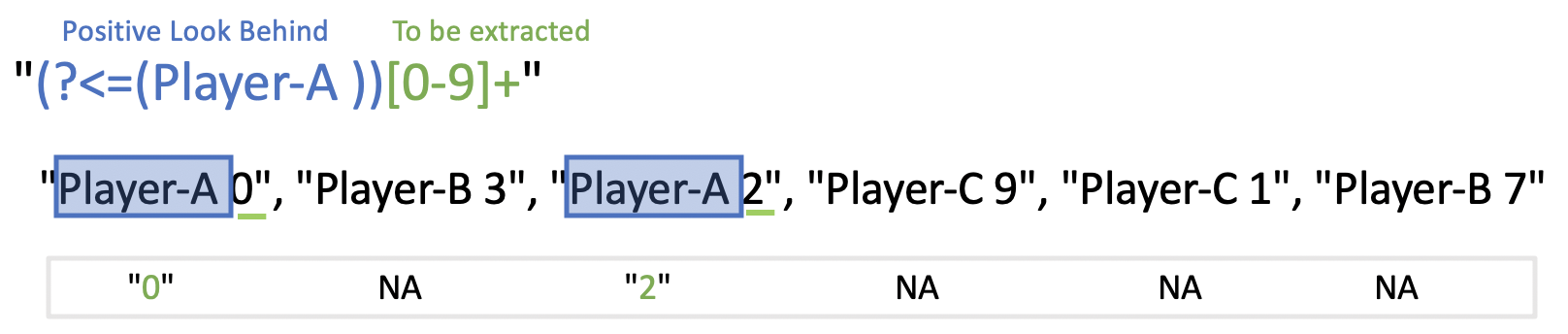

Consider a variable runs that has data of some baseball players from a team over two games. We will use a positive look-behind to extract scores of Player-A. In the syntax (?<=pattern)P, pattern is (Player-A ) and P is the score we want to extract, i.e., [0-9]+.

runs <- c(
"Player-A 0",
"Player-B 3",
"Player-A 2",
"Player-C 9",
"Player-C 1",
"Player-B 7")

str_extract(runs, regex("(?<=(Player-A ))[0-9]+"))
#> [1] "0" NA  "2" NA  NA  NA

Similarly, we can use a negative look-behind to extract scores of players who are not Player-A. In the syntax (?<!pattern)P, P is [0-9]+ and the pattern is (Player-A ).

runs <- c(
"Player-A 0",
"Player-B 3",
"Player-A 2",
"Player-C 9",
"Player-C 1",
"Player-B 7")

str_extract(runs, regex("(?<!(Player-A ))[0-9]+"))
#> [1] NA  "3" NA  "9" "1" "7"
