10 Covariance and Correlation

One of the most common tasks in statistics and data analysis that we have to deal with is answering the ever-present question: Given two variables \(X\) and \(Y\), what is the relationship between them? The answer to this question largely depends on two major factors.

One factor is the way in which the notion of “relationship” is defined in mathematical terms. The other factor has to do with the nature of the variables (e.g. continuous, discrete, ordinal, nominal, binary, etc).

10.1 Two Variables

Let us start by considering the most simple scenario when we have two variables \(X\) and \(Y\), represented by vectors \(\mathbf{x}\) and \(\mathbf{y}\), respectively.

Different types of relations between \(\mathbf{x}\) and \(\mathbf{y}\) are possible, as shown in the figure below containing several scatter-plots. There are linear relations of both type positive and negative. There are also two types of nonlinear relations, one monotone and the other one non-montone. In addition, the last two plots show absence of relations.

Different relations between two variables

Figure 10.1: Different relations between two variables


  • Positive linear relation: \(\mathbf{x}\) and \(\mathbf{y}\) vary simultaneously in the same direction; an increase in \(\mathbf{x}\) is accompanied by an increase in \(\mathbf{y}\) in constant proportion.

  • Negative linear relation: \(\mathbf{x}\) and \(\mathbf{y}\) vary in opposite directions; an increase in \(\mathbf{x}\) is accompanied by a decrease in \(\mathbf{y}\).

  • Nonlinear monotone relation: \(\mathbf{x}\) and \(\mathbf{y}\) vary in the same direction but the slope is not constant; changes in \(\mathbf{y}\) are different dependening on the values of \(\mathbf{x}\).

  • Nonlinear non-monotone relation: although there is a functional relation between \(\mathbf{x}\) and \(\mathbf{y}\), the relation is not monotone; \(\mathbf{y}\) increases and decrases accordingly to \(\mathbf{x}\).

  • No relation: regardless of the values of \(\mathbf{x}\), two things may happen. One is that knowing \(\mathbf{x}\), nothing can be said about \(\mathbf{y}\); the other is that \(\mathbf{y}\) remains constant.

For convenience sake most multivariate techniques focus on linear relations. Even though two variables \(\mathbf{x}\) and \(\mathbf{y}\) may show a nonlinear relation, it is often possible to apply some transformation to one of the them in order to have a more linear association.

The general approach to determine if \(\mathbf{x}\) and \(\mathbf{y}\) are related is to assess whether there is simultaneous variation between them. The idea is to define a measure for quantifying the strength of the relation. When \(\mathbf{x}\) and \(\mathbf{y}\) are in a quantitative scale, the most common way to quantify and assess the relationship between them is with the covariance and correlation.

10.2 Covariance

The covariance generalizes the concept of variance for two variables. Recall that the formula for the covariance between \(\mathbf{x}\) and \(\mathbf{y}\) is:

\[ cov(\mathbf{x, y}) = \frac{1}{n} \sum_{i=1}^{n} (x_i - \bar{x}) (y_i - \bar{y}) \]

where \(\bar{x}\) is the mean value of \(\mathbf{x}\) obtained as:

\[ \bar{x} = \frac{1}{n} (x_1 + x_2 + \dots + x_n) = \frac{1}{n} \sum_{i = 1}^{n} x_i \]

and \(\bar{y}\) is the mean value of \(\mathbf{y}\):

\[ \bar{y} = \frac{1}{n} (y_1 + y_2 + \dots + y_n) = \frac{1}{n} \sum_{i = 1}^{n} y_i \]

Basically, the covariance is a statistical summary that is used to assess the linear association between pairs of variables.

Assuming that the variables are mean-centered, we can get a more compact expression of the covariance in vector notation:

\[ cov(\mathbf{x, y}) = \frac{1}{n} (\mathbf{x^\mathsf{T} y}) \]

Properties of covariance:

  • the covariance is a symmetric index: \(cov(X,Y) = cov(Y,X)\)
  • the covariance can take any real value (negative, null, positive)
  • the covariance is linked to variances under the name of the Cauchy-Schwarz inequality: \[cov(X,Y)^2 \leq var(X) var(Y) \]

10.3 Correlation

Although the covariance indicates the direction—positive or negative—of a possible linear relation, it does not tell us how big or small the relation might be. To have a more interpretable index, we must transform the convariance into a unit-free measure. To do this we must consider the standard deviations of the variables so we can normalize the convariance. The result of this normalization is the coefficient of linear correlation defined as:

\[ cor(X, Y) = \frac{cov(X, Y)}{\sqrt{var(X)} \sqrt{var(Y)}} \]

Representing \(X\) and \(Y\) as vectors \(\mathbf{x}\) and \(\mathbf{y}\), we can express the correlation as:

\[ cor(\mathbf{x}, \mathbf{y}) = \frac{cov(\mathbf{x}, \mathbf{y})}{\sqrt{var(\mathbf{x})} \sqrt{var(\mathbf{y})}} \]

Assuming that \(\mathbf{x}\) and \(\mathbf{y}\) are mean-centered, we can express the correlation as:

\[ cor(\mathbf{x, y}) = \frac{\mathbf{x^\mathsf{T} y}}{\|\mathbf{x}\| \|\mathbf{y}\|} \]

As it turns out, the norm of a mean-centered variable \(\mathbf{x}\) is proportional to the square root of its variance (or standard deviation):

\[ \| \mathbf{x} \| = \sqrt{\mathbf{x^\mathsf{T} x}} = \sqrt{n} \sqrt{var(\mathbf{x})} \]

Consequently, we can also express the correlation with inner products as:

\[ cor(\mathbf{x, y}) = \frac{\mathbf{x^\mathsf{T} y}}{\sqrt{(\mathbf{x^\mathsf{T} x})} \sqrt{(\mathbf{y^\mathsf{T} y})}} \]

or equivalently:

\[ cor(\mathbf{x, y}) = \frac{\mathbf{x^\mathsf{T} y}}{\| \mathbf{x} \| \hspace{1mm} \| \mathbf{y} \|} \]

In the case that both \(\mathbf{x}\) and \(\mathbf{y}\) are standardized (mean zero and unit variance), that is:

\[ \mathbf{x} = \begin{bmatrix} \frac{x_1 - \bar{x}}{\sigma_{x}} \\ \frac{x_2 - \bar{x}}{\sigma_{x}} \\ \vdots \\ \frac{x_n - \bar{x}}{\sigma_{x}} \end{bmatrix}, \hspace{5mm} \mathbf{y} = \begin{bmatrix} \frac{y_1 - \bar{y}}{\sigma_{y}} \\ \frac{y_2 - \bar{y}}{\sigma_{y}} \\ \vdots \\ \frac{y_n - \bar{y}}{\sigma_{y}} \end{bmatrix} \]

the correlation is simply the inner product:

\[ cor(\mathbf{x, y}) = \mathbf{x^\mathsf{T} y} \hspace{5mm} \mathrm{(standardized} \hspace{1mm} \mathrm{variables)} \]

Let’s look at two variables (i.e. vectors) from a geometric perspective.

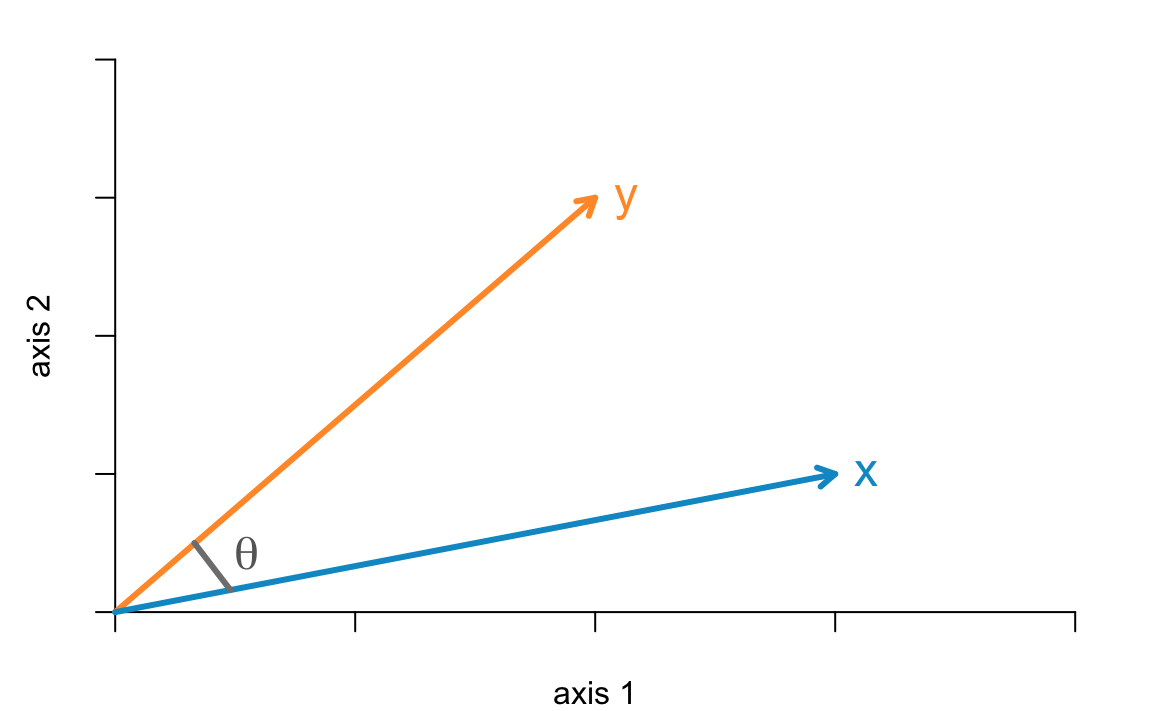

Two vectors in a 2-dimensional space

Figure 10.2: Two vectors in a 2-dimensional space

The inner product ot two mean-centered vectors \(\mathbf{x'y}\) is obtained with the following equation:

\[ \mathbf{x^\mathsf{T} y} = \|\mathbf{x}\| \|\mathbf{y}\| cos(\theta_{x,y}) \]

where \(cos(\theta_{x,y})\) is the angle between \(\mathbf{x}\) and \(\mathbf{y}\). Rearranging the terms in the previous equation we get that:

\[ cos(\theta_{x,y}) = \frac{\mathbf{x^\mathsf{T} y}}{\|\mathbf{x}\| \|\mathbf{y}\|} = cor(\mathbf{x, y}) \]

which means that the correlation between mean-centered vectors \(\mathbf{x}\) and \(\mathbf{y}\) turns out to be the cosine of the angle between \(\mathbf{x}\) and \(\mathbf{y}\).

10.4 Relation as Linear Approximation

A linked but different way to examine relations between the variables is when we ask: Can we approximate one of the variables in terms of the other? This is an asymmetric type of association since we seek to say something about the variability of one variable, say \(\mathbf{y}\), in terms of the variability of \(\mathbf{x}\).

We can think of several ways to approximate \(\mathbf{y}\) in terms of \(\mathbf{x}\). The approximation of \(\mathbf{y}\), denoted by \(\hat{\mathbf{y}}\), means finding a coefficient \(b\) such that:

\[ \hat{\mathbf{y}} = b \mathbf{x} \]

The common approach to get \(\hat{\mathbf{y}}\) in some optimal way is by minimizing the square difference between \(\mathbf{y}\) and \(\hat{\mathbf{y}}\).

Linear approximation

Figure 10.3: Linear approximation

The answer to this question comes in the form of a projection. More precisely, we orthogonally project \(\mathbf{y}\) onto \(\mathbf{x}\):

\[ \hat{\mathbf{y}} = \mathbf{x} \left( \frac{\mathbf{y^\mathsf{T} x}}{\mathbf{x^\mathsf{T} x}} \right) \]

or equivalently:

\[ \hat{\mathbf{y}} = \mathbf{x} \left( \frac{\mathbf{y^\mathsf{T} x}}{\| \mathbf{x} \|^2} \right) \]

Note that the term in parenthesis is just a scalar, so we can actually express \(\hat{\mathbf{y}}\) as \(b \mathbf{x}\). This means that a projection implies multiplying \(\mathbf{x}\) by some number \(b\), such that \(\hat{\mathbf{y}} = b \mathbf{x}\) is a stretched or shrinked version of \(\mathbf{x}\). This is nothing else than the least squares regression of \(\mathbf{y}\) on \(\mathbf{x}\). This is better appreciated in the following figure.

Orthogonal projection

Figure 10.4: Orthogonal projection

Note that the correlation between \(\mathbf{y}\) and \(\hat{\mathbf{y}}\) is:

\[ cor(\mathbf{y}, \hat{\mathbf{y}}) = \frac{\mathbf{y^\mathsf{T} x}}{\| \mathbf{y} \|} \]

or alternatively:

\[ cor^{2}(\mathbf{y}, \hat{\mathbf{y}}) = \frac{\mathbf{y^\mathsf{T} x}}{\mathbf{y^\mathsf{T}}y} \]
